Product features
Traction ratio: 2:1
Rated capacity: 800、1000kg
Rated elevator speed: 0.63、1、1.6、1.75m/s
Max. shaft load: 3000kg
Applicable converter: 3 phase 400V
Brake voltage: 110VDC
Product Description

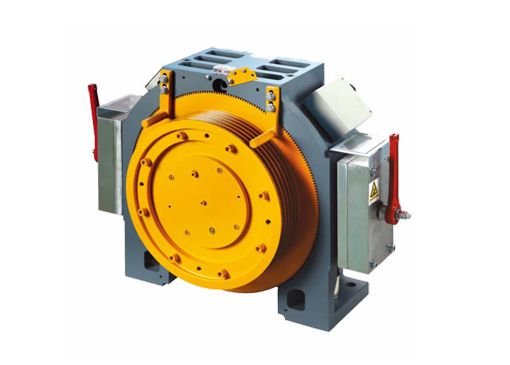

This series of gearless traction machines has unique external rotor construction so that the forces are applied to the machine
reasonably. Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise.
It is provided with block brake, which has high braking torque and low closing noises.It's a high-ratio product.
The product is provided with manual brake release device and remote brake release device, and can be used in small machine room
reasonably. Excellent magnetic field design allows the machine to operate steadily with low noises and temperature rise.
It is provided with block brake, which has high braking torque and low closing noises.It's a high-ratio product.
The product is provided with manual brake release device and remote brake release device, and can be used in small machine room
elevators and non-machine room elevators.
