Traction ratio: 2:1
Rated capacity: 400、450、630kg
Rated elevator speed: 0.4、1、1.6m/s
Max. lifting height: 60m
Max. shaft load: 2000kg
Applicable converter: 3 phase 400V
Brake voltage: DC200V
Number of motor poles: 10 poles

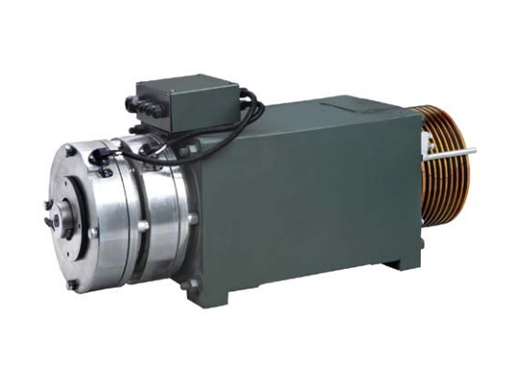

This series of gearless traction machines has unique small and long design. The traction sheaves are cantilever-mounted. Unique design allows easy installation and removal of traction sheaves.
The stator core is unique laminated core design without a seat, so the machine weight and cost are reduced.
The traction machine has shaft brake with spline fit. So the machine is exquisite, compact and small, and has better performance. This type of traction machines can fully meet small machine room and non machine room elevators and effectively save the space.
Accessories made by well-known international manufacturers and imported sealed bearings are used in the traction machine, which avoids grease change and maintenance, so perfect quality is ensured.
