Max. film width???????????????????? 850mm~1650mm
Max.?printing speed?????????????? 300m/min????????????
Unwind and rewind roll dia???? Ф 600 mm / Ф800 mm / Ф 1000 mm
Plate cylinder dia????????????????? ?Ф 120mm ~ Ф300mm
Register error??????????????????????? vertical ≤ ± 0.10 mm (auto register)
range(standard)?????????????????? ?horizontal? ≤ ± 0.10 mm (auto register)

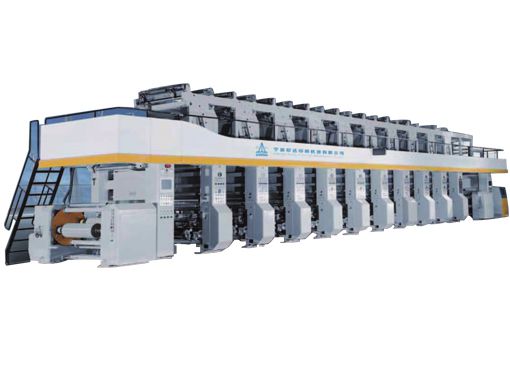

FWZ Series Shaftless Drive Rotogravure Printing Machine
FWZ series is a series of high printing speed,precision,reliability and automatic shaftless drive rotogravure printing machine developed and manufactured by Ningbo Xinda based on our high-end technology and large precision CNC machining equipments and cooperation with the Germany first-class industrial conteol company.FWZ series shaftless drive rotogravure printing machine is the notable milestone machine for the great development of those large-scale flexible packaging companies.
Brief Introduction
Independent rotary disk-type unwind / rewind stations.
Highly sensitive close-loop tension control system.
Independent servo motor driving system with energy feedback function of unwind station for electric energy saving.
Automatic reel changing alarm function, pre-drive the new reel to the same rotation speed of old reel for non-stop reel changing.
Automatic detection of the tape position and non-stop cutting and splicing.
Safety chuck & air expanding shaft fix the reel.
Protection device for rotation of turret.
Brief Introduction
Shaftless pneumatic chuck of plate cylinder,integral print impression structure with double side adjustable guide roller.
Inverter contorl the oscillation of doctor blade, quick changing of blade and three-dimension adjustment structure.
Inking system adopts pneumatic control ink transferring roller or independent movable ink tray trolley.
Every plate cylinder is driven by a servo motor. It has function of upload and download of the register specification and software of order management.
Mount a set of dismantled plate cylinders, it can automatically orientate to the register position saving time and materials.
